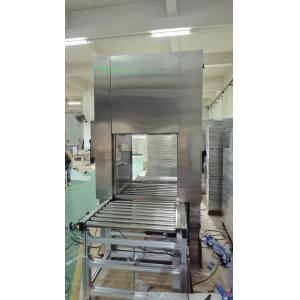

PLC Clean Room Decontamination Pass Chamber With Conveyor Line For Material Transfer
Quickly detail:
PLC Control system with touchable screen
Conveyor line integration with air shower system
HEPA filter efficiency: 99.999%@0.3um
Decontaimation process by HEPA filter and perfilter
Sealed desgin in the vertial door
Introduction:
PLC Control System:
Centralized automation via programmable logic controllers (PLC) for precise coordination of conveyor speed, door operation, and air shower cycles (0-99s adjustable)
Conveyor Integration:
Stainless steel (SUS304/SUS201) or PU-coated rollers support continuous material flow, with load capacities tailored to cargo weight (e.g., up to 50kg/m²)
Decontamination Process:
High-velocity (25m/s) HEPA-filtered airflow (99.999% efficiency @0.3μm) removes particulates from items during transit. UV sterilization modules are optionally integrated for microbial control
Sealed Design:
Interlocking rapid-roll doors (manual/automatic) minimize air leakage, while IP65-rated construction ensures compliance with ISO Class 100-10,000 cleanroom standards
User Interface:
Touchscreen HMI displays real-time parameters (wind speed, cycle count) and supports remote monitoring via IoT connectivity
Technical Parameter:
MODEL | Air shower pass box with auto roll conveyor line |
External size(mm) | 980X800X2250 mm |
Internal size (mm) | 600X600X600mm |
Interlocker | electronic interocker |
Air way | three side air blowking |
Pre-filter (mm) | 560x275x17 |
HEPA Filter(mm) | 630x630x69 |
Air flow (m/s) | 1200m3/h |
Fan power | 380V/50HZ 600w (1set) |
Noise | <75 |
HEPA Filter | 99.995% @0.3um |
UV lamp | 1 pcs |
Material
| 1:Entirety Sus201/304 (T=1.0/1.2mm) |
Customer’s design is available.
Control Programe :
1: Exit is automatic slid door(up/down), entrance door is normally manual door
2: after the goods entrance the cabinet closed the entrance door,
the air clean system will be working 15s.meanwhile the two door interlock.
3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods
pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2
should be together start and stop)
4: Three side with blow. 1 Sets ion anti-static device.
5: Emergency button help you out of suddenly trouble
Part1: Technology Illustration:
1: Major Structure and frame: Aluminum profile (50x50mm)
2: Belt: Anti-static PVC belt green color
3: Height: 700-1000mm adjustable
4: Motor: 0.4kw 380V/ 50HZ.
5: Speed: 1-15m/min (adjustable)
Part2: Technology Illustration:
1: Major Structure: steel with power coated plated
2: Frame: steel with power coated square cube. 40mmx40mmx1.5T
3: Belt: Anti-static PVC belt green color
4: Motor: 380V/50HZ.
5: Speed: 1-15m/min adjustable
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
